Pairing Wireless Mics

When turned on, your RODE Wireless GO ii Wireless Microphone Transmitters (Tx) will automatically connect with the Microphone Receiver (Rx). Your mic units and their buttons are described in pictures below.

If one (or both) of your microphone Transmitters (Tx) is not connecting with its Receiver (Rx), you will see:

a) a blue flashing LED light on the transmitter above the ‘∞‘ symbol (see Tx 6 below).

b) the sound indicator bar on the screen of the Receiver (Rx) is missing (see Rx 1 below).

To pair your transmitters to the receiver:

1. Press and hold the power button on each transmitter (Tx) for three seconds to turn them on.

2. Press the Channel Select Button on the Receiver (Rx6) to select channel 1 or 2 (a box will appear on the receiver screen around the channel you are attempting to pair).

3. Press and hold the same button (Rx6) again until the "WiFi" symbol flashes, then release the button.

4. Now press the power button (Tx2) once on the Transmitter that you want to pair.

5. When it connects, you will see a bouncing bar appear across the top of the Receiver's Screen (Rx1).

6. Repeat steps 2-4 to pair the other transmitter.

Click for more detailed instructions and a video tutorial.
Consult the official Rode user guide here.

Understanding your Wireless Mics (in pictures)

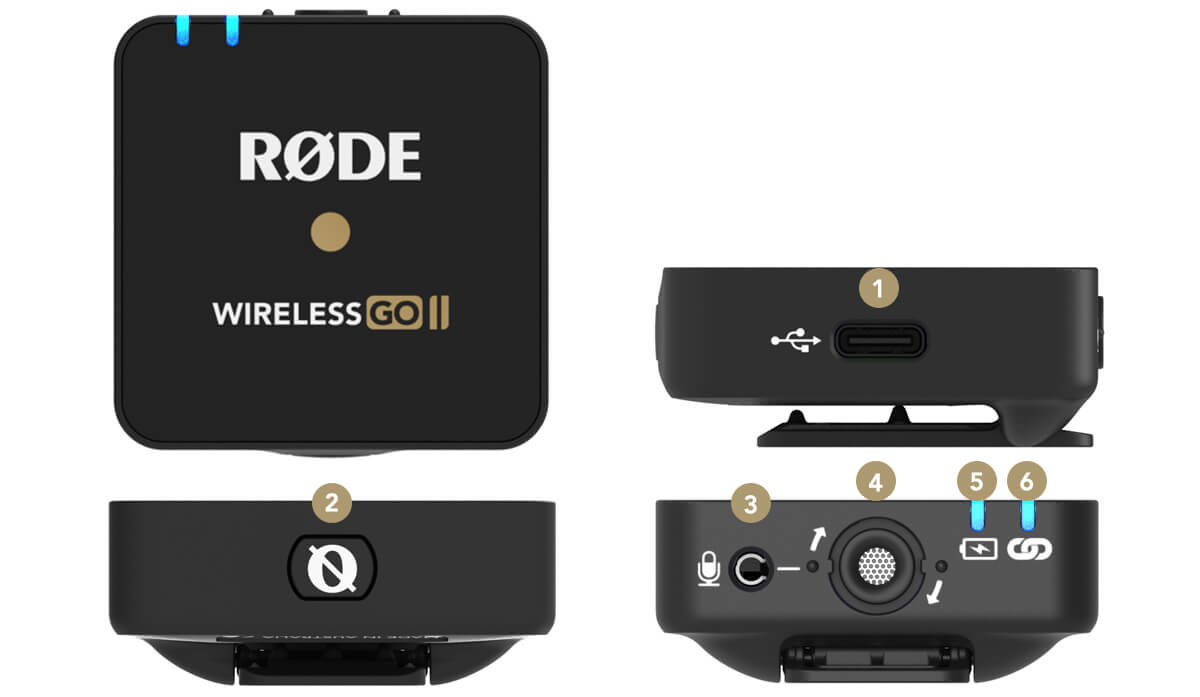

Transmitter (Tx) (aka. the microphone)

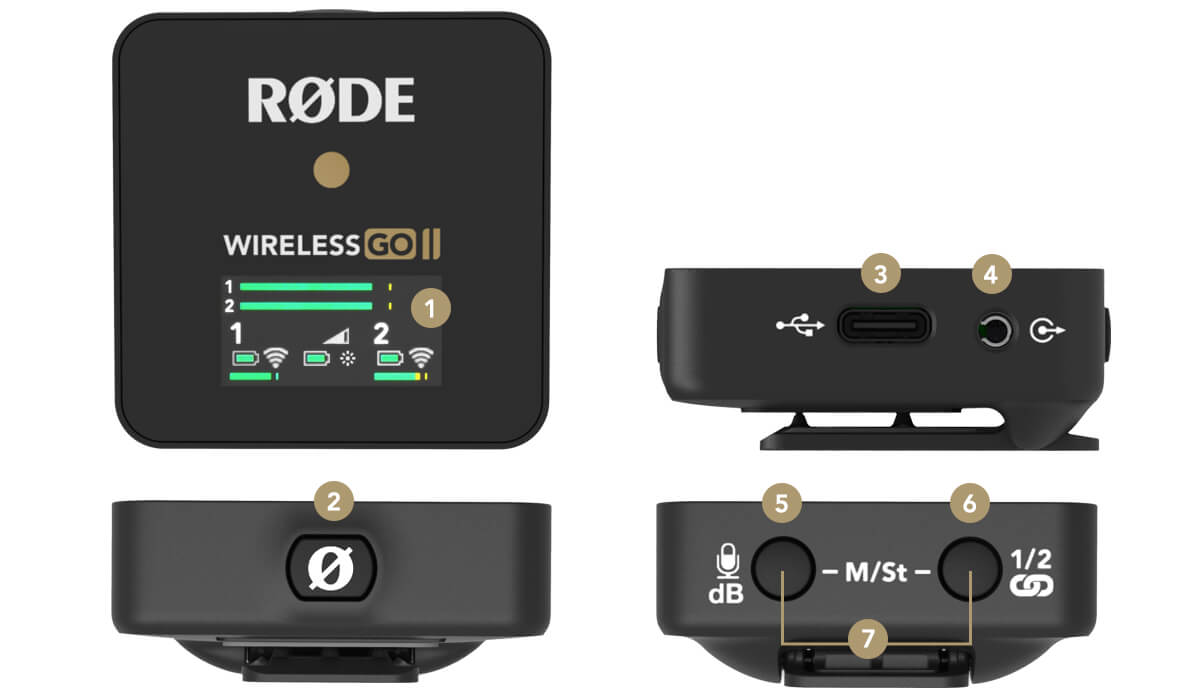

Receiver (Rx) (aka. the unit attached to your camera device)
