Finding Your RTMP Server URL and Stream Key

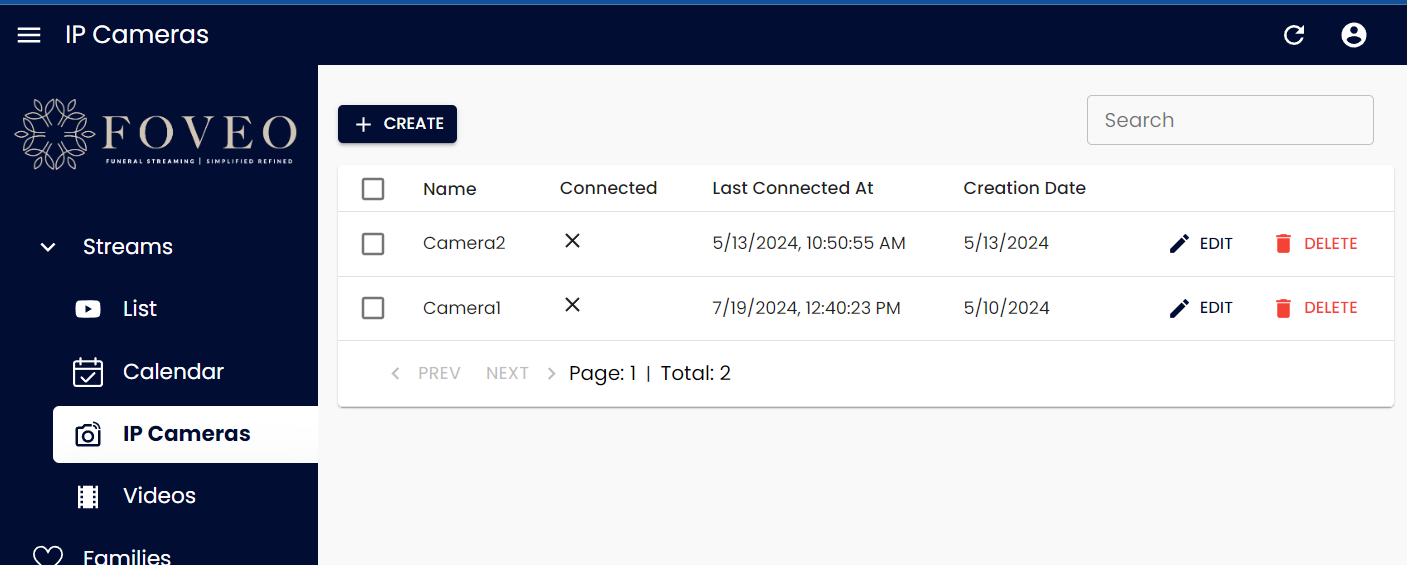

1. Navigate to IP Cameras in the Left Menu

1. In a Google Chrome browser, sign in to foveo.app (with your email address and password).

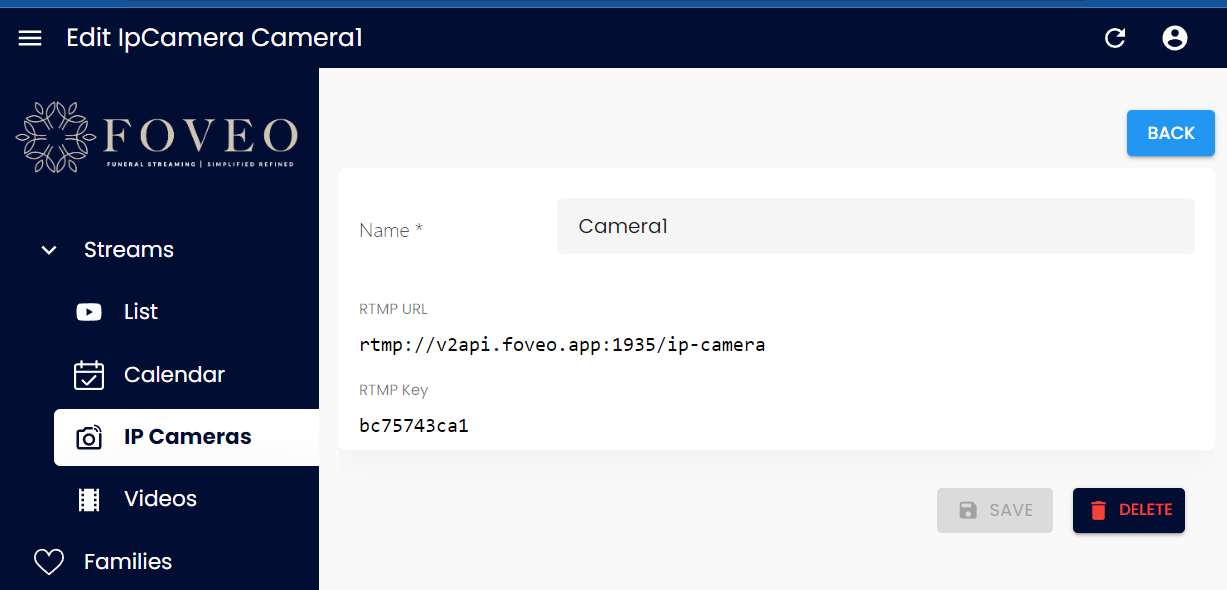

2. Open the IP Cameras Panel in the left menu (Streams > IP Cameras) and Click on the Name of the Camera to reveal the RTMP URL and RTMP Key (aka Stream Key).
   1. If No Camera is visible, click on +Create in the top left corner.

   2. Give your Chapel Camera (or videographer) a Name for your Chapel Camera (or videographer) connection and then click Save.

   3. Click on the Name of the Camera to reveal the RTMP URL and RTMP Key.


3. Open the Live Steam Settings panel or menu in your live streaming platform/encoder (i.e., OBS Studio, Livestream Studio 6, Ultra Stream, Vimeo, HELO, etc.) or the web interface of your internet-connected (IP) camera.

4. Locate the RTMP Server and Stream Key fields and update them with your RTMP server and Stream Key settings from Foveo.app.
   1. Enter the RTMP Server address:  rtmp://v2api.foveo.app:1935/ip-camera
   2. Enter the RTMP Key (aka Stream Key):  (example)  bc75743ca1
   3. Save the settings.

      Note: If your live streaming app does not have separate fields for the RTMP URL and Stream Key, you may enter both the URL and the Key in the same RTMP field, separated by a slash (example: rtmp://v2api.foveo.app:1935/ip-camera/bc75743cr2a ).


2. Test your Camera's RTMP Connection to Foveo

1. Start live streaming from your camera (turn it on or start streaming with button push or click).

2. Open the IP Cameras page in Foveo (or refresh the page) to see when your camera "Last Connected At." A check mark under Connected and the connection time should be displayed.

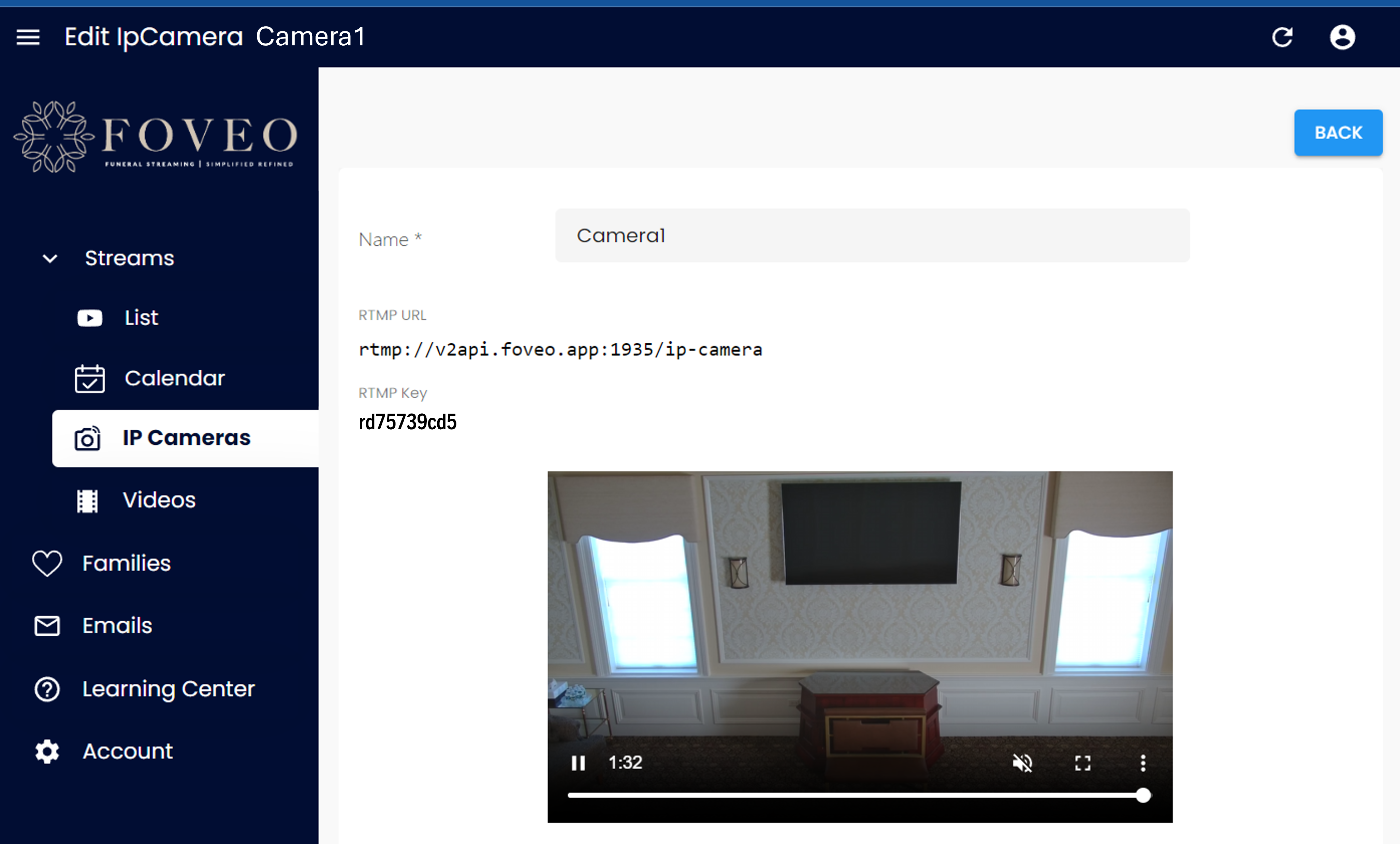

3. Click on the camera Name to reveal the RTMP URL, RTMP Key, and the live video feed from your camera (a Google Chrome browser is required).
